Fine sorting system IFE-SORT

separation of fine bulk material

IFE-SORT is a density separator based on fluidbed technology for finde, dry material. This air sorting table uses a combination of vibration and airfluid technology to create the separation process. Heavier particles are conveyed against gravity, whereas lighter particles are floating on the fluidbed and slide downwoards. Applications include recycling and processing of secondary raw material. The SORT is also applicable in the wood, food and mining sectors for separation of dry materials.

Request machine now

can be opened during operation

machine inclination adjustable

Product highlights

A versatile system

IFE-Sort allows for various adjustment and is therefore a versatile fine sorting system. All parameters can be adjusted individually, either manually or electrically, to optimize the separation results.

IFE-SORT fine sorting system youtube video ENG

IFE-SORT Feinsortiersystem Maschinenaufnahme

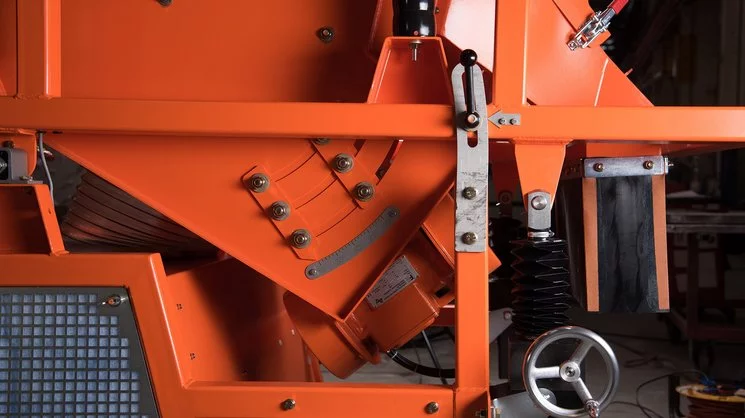

IFE-SORT Einstellungen Maschinenaufnahme

Data
Advantages

Data

standard design	consits of basic apparatus with perforated screen plate, driven by IFE unbalanced motors and a fan
nominal width	600 mm and 1000 mm
easy adjustment	of angle and amplitude of vobration, inclination, speeds, etc.
design	dustproof
control cubicle	IP 55 with frequency converter for drives and fan

Advantages

all physical aspects are adjustable, providing a very wide range of applications, including very fine material
high feed rates resulting in low operational cost
maximized concentrations
short payback

Industries

Production of glasses of primary and secondary raw materials (e.g. recycled glass)

Production of wood chips, pellets, fiber board

Applications in the fertilizer and detergent industry

Includes municipal and commercial waste, building site remains, scraps, light packaging and landfill remediation

Processing of scrap metals of all types and origins
