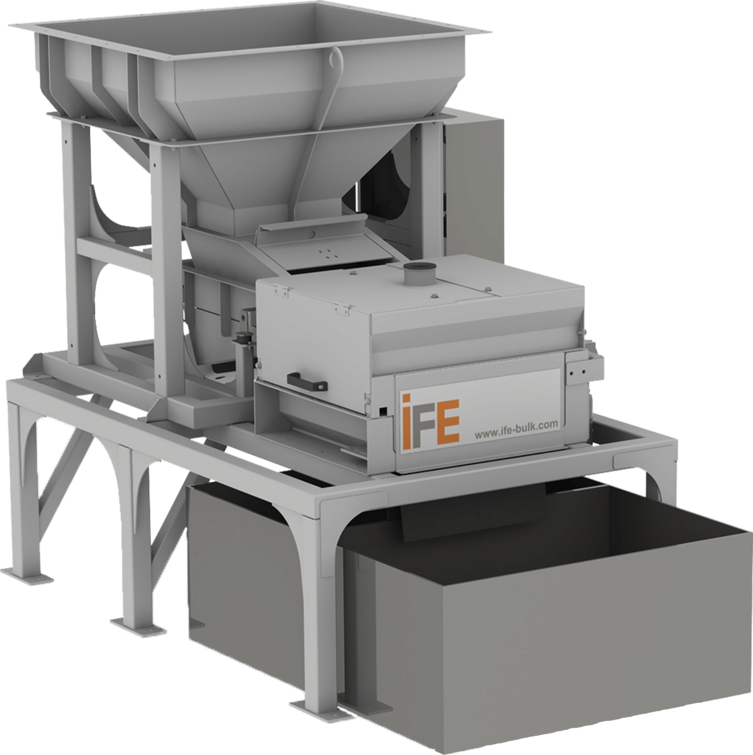

High intensity magnetic separator

Magnetic technology

high-powered magnetic separation

IFE permanentmagnetic high intensity separators are used for cleaning of material from impurities as well as for concentration and accumulation processes for minerals. They are best used to separate fine particles which have  poor magnetic properties.
The utilization of extremely powerful permanentmagnetic material guarantees superior separation results.

Request machine now

conveyor belt control
highest field strength
Product hightlights.





Modular design

IFE-permanentmagnetic-high intensity separators are designed in modules. Such modules are: magnetic pulley, conveying belt, pulley, scrubber, splitter, bearings and drive system.
This modular design allows for single-, double- and multistaged separators to generate the perfect separator. Additionally it allows for easy maintenance and good accessability.
The matching control system is within the scope of supply.

Hochintensitäts-Rollenscheider Maschinenaufnahme
Hochintensitäts-Rollenscheider Maschinenaufnahme

Data

nominal diameter 80 mm and 100 mm
nominal width 250 to 1500 mm
magnetic pulley with radial field arrangement
neodymium-ferrous-bor-alloy with highest flux density available
options open and dustproof variant available
multistaged (cascaded) variant with up to 4 stages
standard > 1T at belt surface + C42



Advantages

  • extra strong permanentmagnetic system
  • optimization of diameter, pole distance and thickness of magnetic material for maximized separation results
  • modular design allows for easy maintenance and easy access
  • automatically controlled belt guidance
  • multistaged (cascaded) variants possible
  • maximized lifetime

Industries

Production of ferrous and non-ferrous castings

More

Production of glasses of primary and secondary raw materials (e.g. recycled glass)

More

Mining applications, opencast and underground mining for all kinds of ores

More

Coal mining and coke production

More

Applications in the fertilizer and detergent industry

More

Includes municipal and commercial waste, building site remains, scraps, light packaging and landfill remediation

More

Processing of scrap metals of all types and origins

More

Includes gravel, sand, industrial minerals

More

Application examples

References & Industries

Sand and gravel

20 Machines in AT, DE, HU, TR, FIN

Plastics production

9 Machines in AT, IT, TW, LI

Mining

5 Machines in GER, AT, S

Scrap industry

4 Machines in AT, GER, CZ
