Vibrating tubular feeder with unbalanced drive

for conveying of bulk material

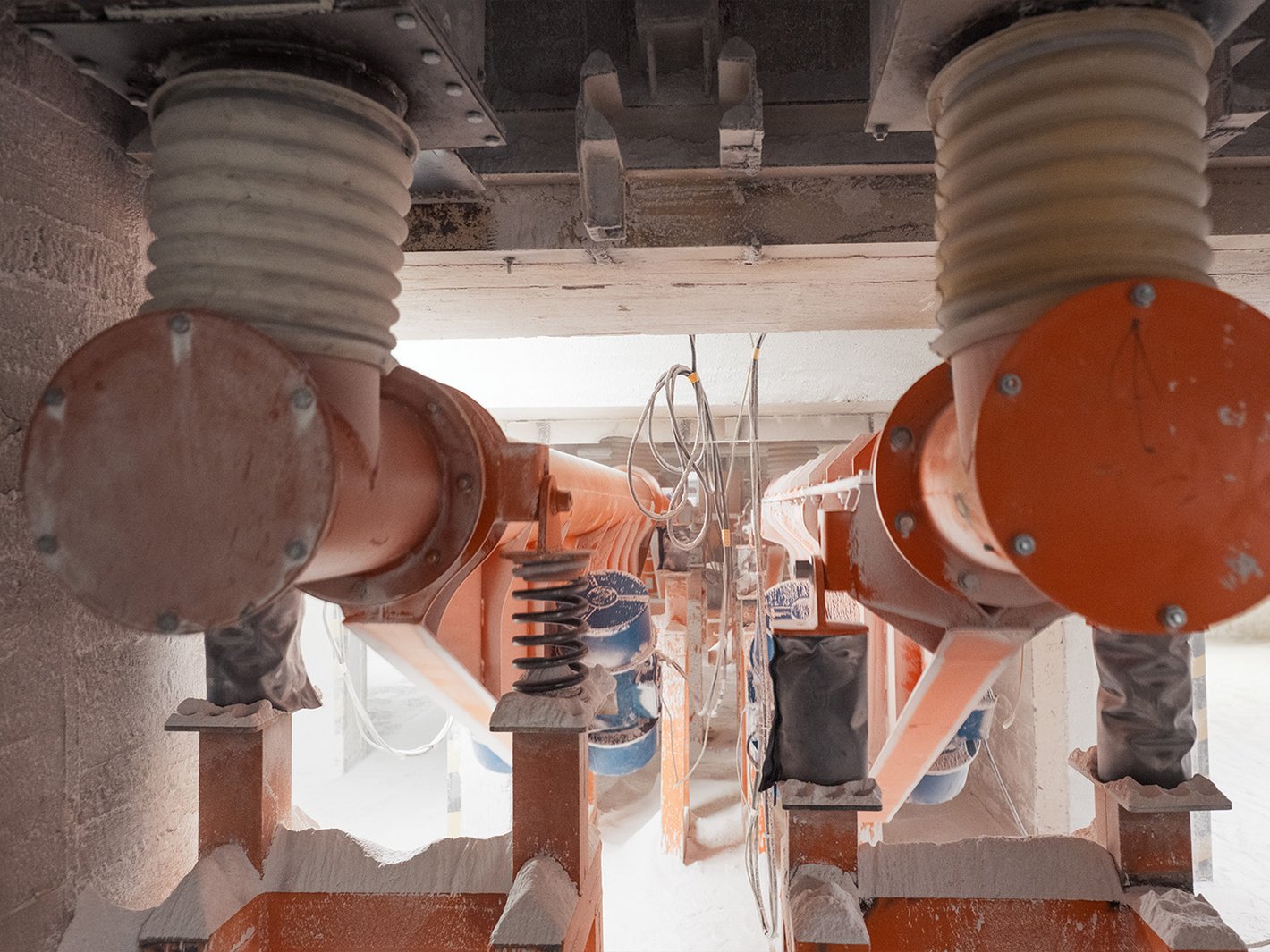

IFE vibrating tubular feeders with unbalanced motors are used for bin extraction and for conveying of bulk material. These units are extremely effective when used to convey dusty material. Inlet and outlet can be sealed off by means of elastic sleeves. The vibrating tubular feeders are manufactured in a welded design, driven by two IFE unbalanced motors.

Request machine now

tubular body exchangeable

cleaning opening as required

application-specific inlets and outlets

flaps attachable

Product Highlights.

IFE-vibrating tubular feeders are designed and manufactured specifically to the application. Based on clients demand a wide variety of versions are available:

tube made of mild or wear resistant steel, stainless or acid-proof steel
multiple inlet and outlet nozzles possible
manually or automatically operated slide gates
feeder available on swivel frames for optimized material distribution
bolted design for easy exchange of tube
long distances covered by stringed together feeders

Reliable due to quality

IFE-unbalanced motors made of high-grade components have reliably run for decades in vibrating conveying systems. A rigid motor shaft and roller bearings with long lifetime allow for permanent operation of the motors, even in harsh conditions.
The standard design allows for protection class IP66 according to EN60529 and includes a thermistor. IFE-unbalanced motors are available in 2-, 4-, 6- and 8-pole design. This broad variety allows for an optimized selection according to the specific application requirement.

Data
Advantages

Data

totally encapsulated tube	with inlet and outlet nozzles
nominal length	up to 10000 mm
nominal diameter	up to 475 mm
unlimited conveying distances	feeders can be stringed together
driven	by unbalanced motors
drive placement	underneath or above tube
tube material	according to clients specification
control of feed rate	by IFE control unit including frequency converter
