Eddy Current Separator INP CENTRIC

efficient non-ferrous metals separation

IFE eddy current separators are used to separate non-ferrous metals (aluminium, copper, brass, etc.) from bulk material of all kinds.

The centric design IFE INP is used for the:

removal of non-ferrous particles from bulk streams (biomass, waste wood, etc.)
generation of non-ferrous concentrates (e.g. coarse material)
separation of ubc (used beverage cans)

Request machine now

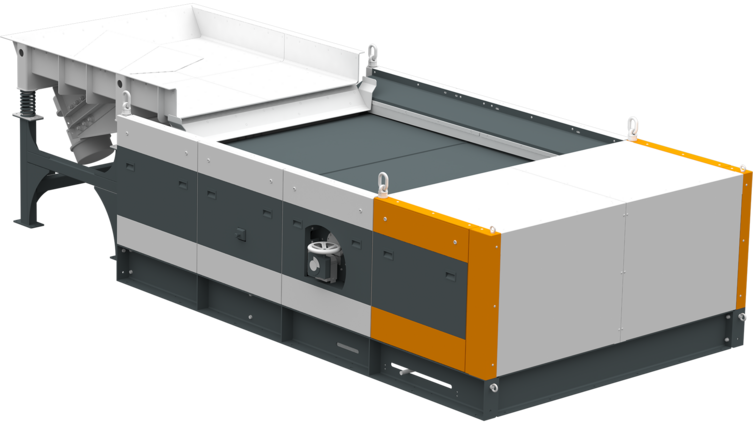

Eddy Current Separator INP with eddy current bar

brush material dependent

magnetic drum optional

customized splitter

Operating principle.

Conductive particles (aluminium, copper, etc.) are separated from insulators. The eddy currents are induced in conductive particles due to a time-varying magnetic field. This results in repulsive forces.
Owing to the particularly strong permanentmagnetic field and the high speed of the magnetic rotor, good separation results can be obtained even with small or difficult-to-separate materials.

The material to be separated is transported over the belt conveyor in a single-particle-layer and gets to the area of fast rotating magnetic fields of the head pulley at the discharge side. This induces eddy currents which build up a magnetic field in each particle of non-ferrous metal. The magnetic field opposes the permanentmagnetic field of the magnetic rotor. Therefore a strong impulse is exerted on the parts of non-ferrous metals, throwing these particles off the stream of the conveyed material.

Since the material is exposed to the magnetic field for a long period of time and due to the usage of various rotors with different pole numbers, the centric IFE INP allows for a high specific feed rate at particle sizes of > 15 mm.

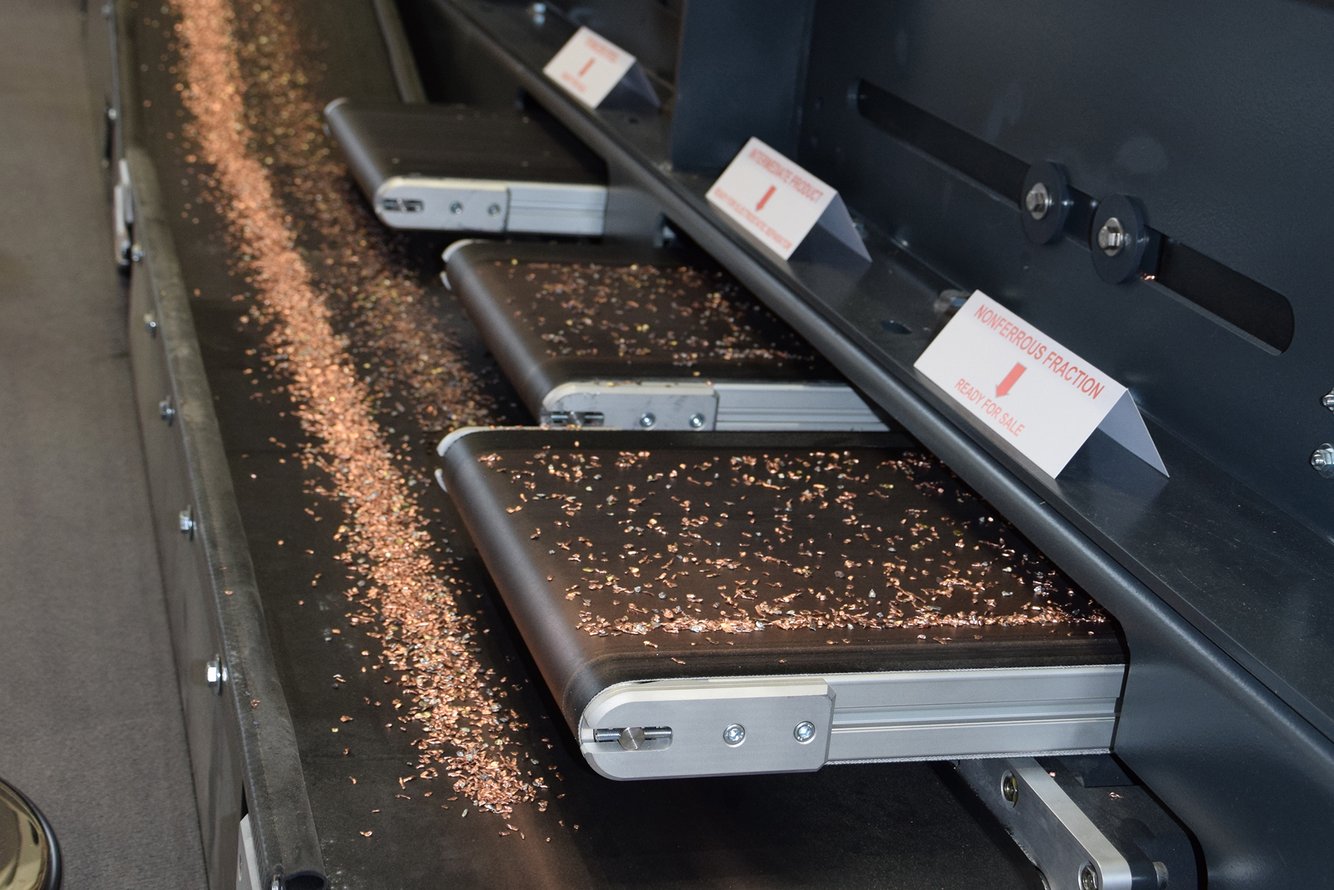

Wirbelstromscheider INP ENOS Fraktionen Detailaufnahme

Wirbelstromscheider INP ENOS Maschinenaufnahme

Data
Special functions

Data

Magnetic drum	horizontal, centric arranged neodymium permanent magnets
Pole changing frequency	betw. 300 and 900 Hz
Belt speed	2 to 3 m/s
Feedrate	highest specific performance for coarse material
High magnetic flux density	at the belt surface

Special functions

Emptying of the belt in case of loss of voltage due to regenerative feed from the magnet rotor to supply the belt drive motor
Separator with optional, automatic splitter adjustment
Separation system: available as Fe-NF combination (with IFE magnetic drum in the feeding unit)
Belt-changing apparatus
Specially developed belt cleaning system (in-house, option)
Automatic lubrication system (option)
Control via touch panel
Standard belt width up to 3

IFE Wirbelstromscheider INP Maschinenaufnahme

Industries

Production of glasses of primary and secondary raw materials (e.g. recycled glass)

Production of wood chips, pellets, fiber board

Processing of granulates, production residues as well as secondary raw materials such as PET flakes

Includes municipal and commercial waste, building site remains, scraps, light packaging and landfill remediation

Processing of scrap metals of all types and origins

Production of building materials such as lime, mortar and plaster
